Design and specifications
Thickness, weight, layer structure and laboratory data help integrate QuietPipe into execution details and tender documents with less ambiguity on site.
EN 14366:2004 | Peutz report | Israeli manufacturing
QuietPipeAcoustic Pipe Wrap
A two-layer acoustic wrap for wastewater, drainage and water pipes in construction projects. Designed to reduce flow noise and vibration, with laboratory data, technical specifications and a clear installation process for site teams.
- 17.5dB(A)
- Measured reduction in the Peutz report
- 18 mm
- Total thickness of both layers
- 1x2 m
- Standard size, project-based customization
Acoustic testing
Measured performance, not a vague sense of quiet.
QuietPipe was tested by Peutz in the Netherlands for noise from wastewater installations according to EN 14366:2004. The test was carried out on a 110 mm PVC pipe under different flow scenarios, with and without the wrap.
The planning-relevant result: noise reduction up to 17.5dB(A) across the tested flow rates, including 15-17.5dB(A) at 0.5-2 liters per second. The data is presented for specifications, acoustic consultants and execution teams.
Insertion Loss by Flow Rate
Data from laboratory report A 4359-2E-RA-001 dated May 8, 2023.
Project implementation
One product for three decision points: design, execution and procurement.
On-site execution
The sheet is cut to size, wrapped around the pipe and fixed with cable ties. It can be installed without replacing the piping system and works in tight shafts.
Procurement and supply
Local manufacturing, direct support and size flexibility. Suitable for wholesale project orders, coordinated by quantity and schedule.

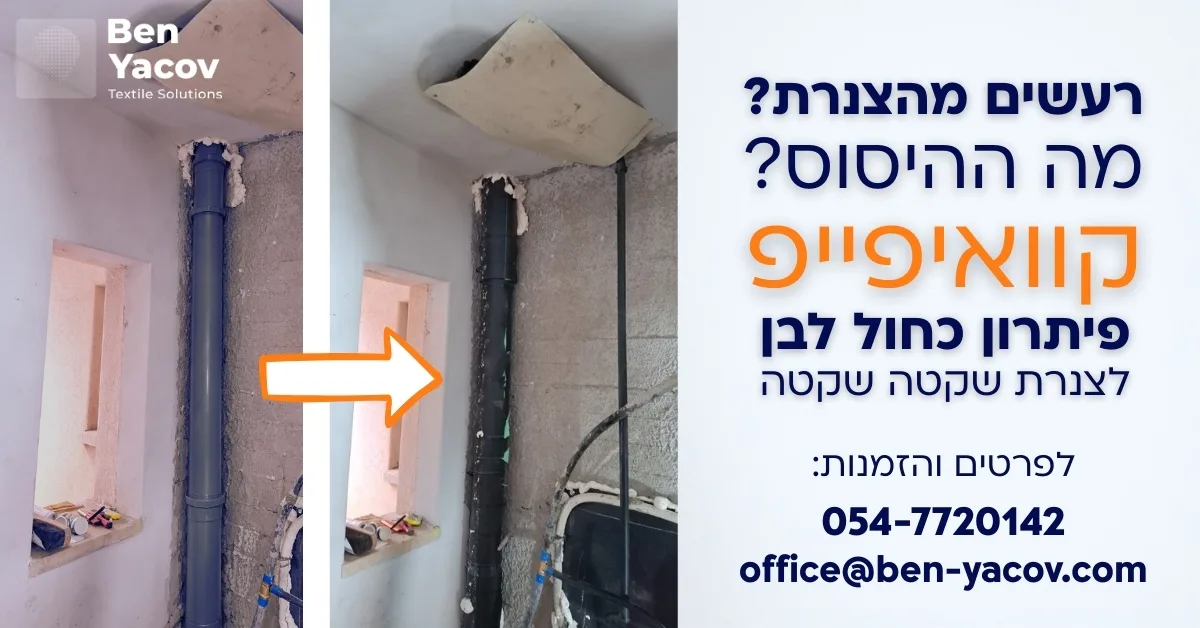

Before the wall is closed
An exposed wastewater pipe is a noise source. A wrapped pipe is an execution detail.
In wet rooms, service shafts and mechanical spaces, an uninsulated vertical pipe radiates flow noise and impact sounds into adjacent spaces. QuietPipe is designed to wrap the pipe before wall closure or as a focused acoustic treatment for existing piping.
- Continuous wrapping along the pipe
- Overlap and closure around joints
- Fixing with cable ties at regular intervals
Product demonstration
A quick look at the sheet, material layers and application method.
The videos are intended for quick review by site managers, plumbing contractors and finishing teams: a short vertical product clip alongside a wide installation video.
Short product video
A quick view of the sheet and its use in projects.
Installation video
Pipe wrapping, overlap and fixing method.
Project orders
Get a quote by quantity, size and delivery schedule.
Wholesale sales for contractors, execution companies and projects. Sales to individuals are available for pickup only and by prior coordination.
Sheet structure
Acoustic absorption on the pipe side, mass on the outer side.
The foam layer faces the pipe and reduces acoustic energy generated by water flow and pipe contact. The heavy bituminous mass layer adds weight and blocking, reducing noise radiation into adjacent spaces.
Layer A15 mm open-cell foam
Layer BHeavy bituminous mass
Width1 m standard
Length2 m, customizable
WeightApprox. 3.4 kg/sqm
SKUQTP55555
Flexible sizing
Flexible sizes - from manufacturer to contractor.
Because the sheet is manufactured locally in Israel, the project does not have to adapt itself to a fixed shelf size. We can manufacture and supply QuietPipe in a size that matches execution details, quantities and repeated shaft conditions.
The right size can reduce on-site cutting, lower waste, shorten work time around repeated pipe shafts and help procurement order a product that arrives closer to the real site detail.
100×300 cm
70×300 cm
50×300 cm
50×200 cm
Installation
Continuous wrapping, correct overlap and regular fixing along the pipe.
Download the full installation guide-
01
Measure and cut
Cut the sheet to length, about 5 cm more than the pipe circumference, to create full overlap.
-
02
Wrap
Place the sheet around the pipe so the raised foam side faces the exposed side of the pipe.
-
03
Fix
Fix with cable ties. A tie every 30 cm is recommended, with careful closure of joints and overlaps.
Solution comparison
When the specification calls for acoustic pipe wrap, check what was actually measured.
Many projects compare acoustic pipe wraps, imported insulation sheets and wastewater pipe wrapping solutions. QuietPipe combines laboratory data according to EN 14366, local production, supply availability and direct manufacturer support.
CriterionQuietPipeOther solutions
Test standardEN 14366:2004, Peutz reportVaries by product and supplier
ManufacturingMade in Israel, Ben Yacov Textile SolutionsOften imported or stock dependent
SupportDirect from the manufacturerThrough importer or reseller
FAQ
Questions that come up before specification or ordering.
How is QuietPipe different from built-in silent piping?
Silent piping is a dedicated pipe system. QuietPipe is a wrap for existing or new piping, allowing acoustic improvement without replacing the entire piping system.
Is the sheet suitable for PVC pipes?
Yes. The laboratory test was performed on a 110 mm PVC pipe, and the sheet can be used for additional applications according to site execution details.
Can it be ordered in project quantities?
Yes. The page is intended mainly for wholesale project sales to contractors and execution companies. Quantities, lengths and supply can be coordinated as needed.
Do you also sell to individuals?
Yes, but sales to individuals are for pickup only and by prior coordination at +972-54-7720142.
Where can I get technical data and installation details?
Technical specification and installation guide links are available on this page. Additional project documentation can be provided upon request.
